Linkcharging E-Series - Customer Photos

Customer photos - LINKCHARGING E-SERIES

We have already had happy customers in many different countries with the Linkcharging Wallbox E-Series. We asked our customers and partners to send us pictures of the fully installed wallboxes. You can see them here.

"The most professional Wallbox"
View product in shop

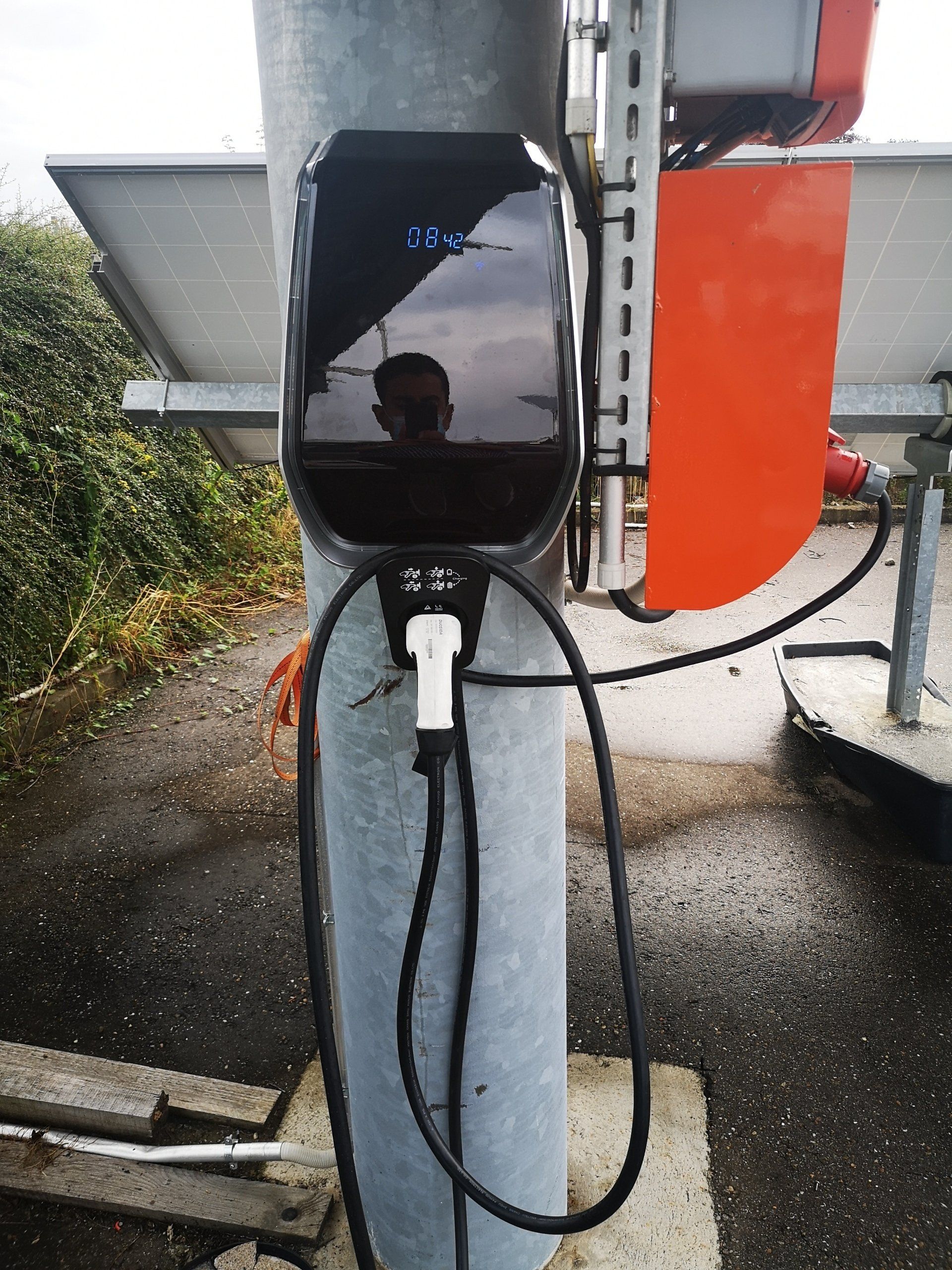

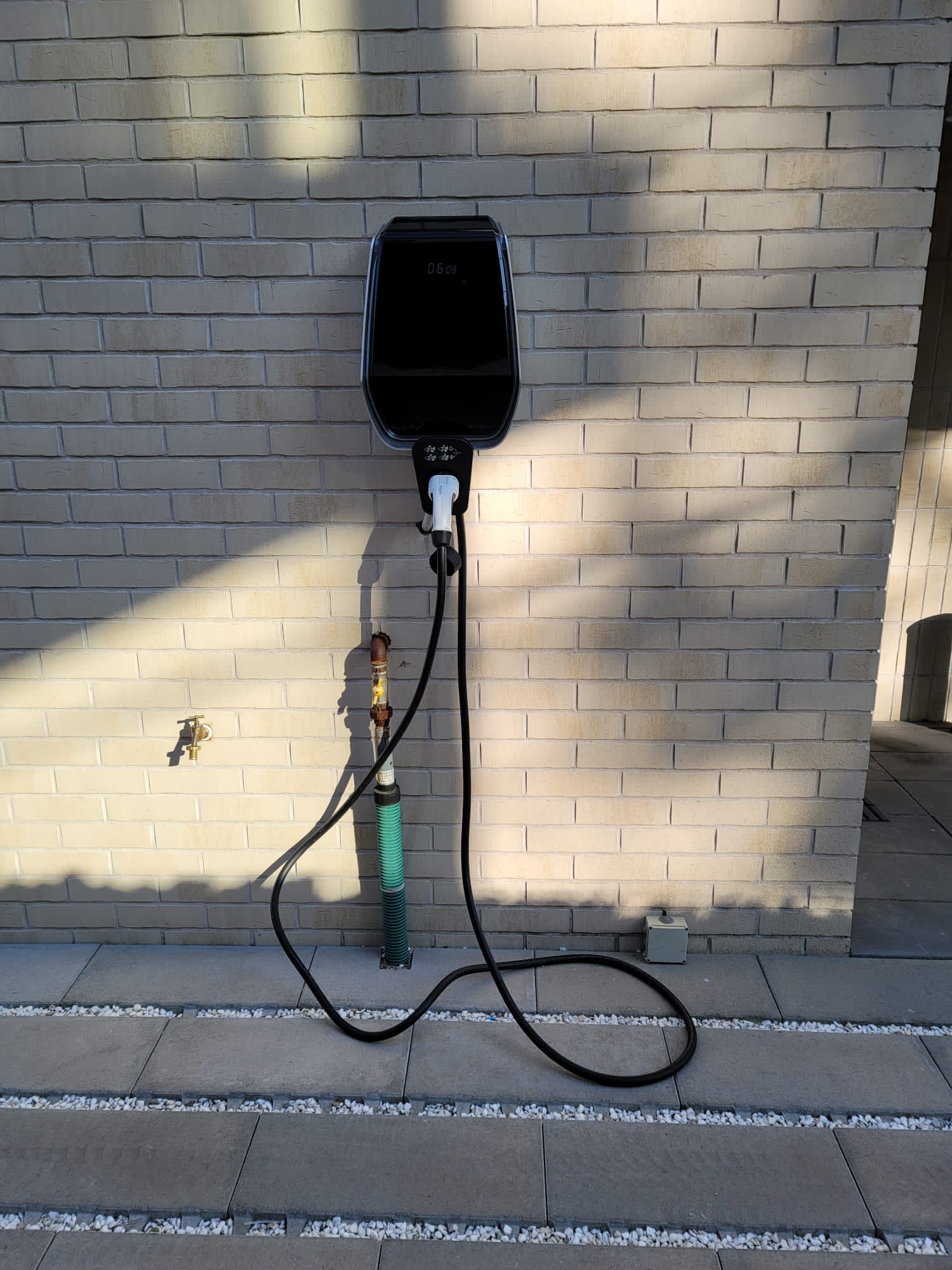

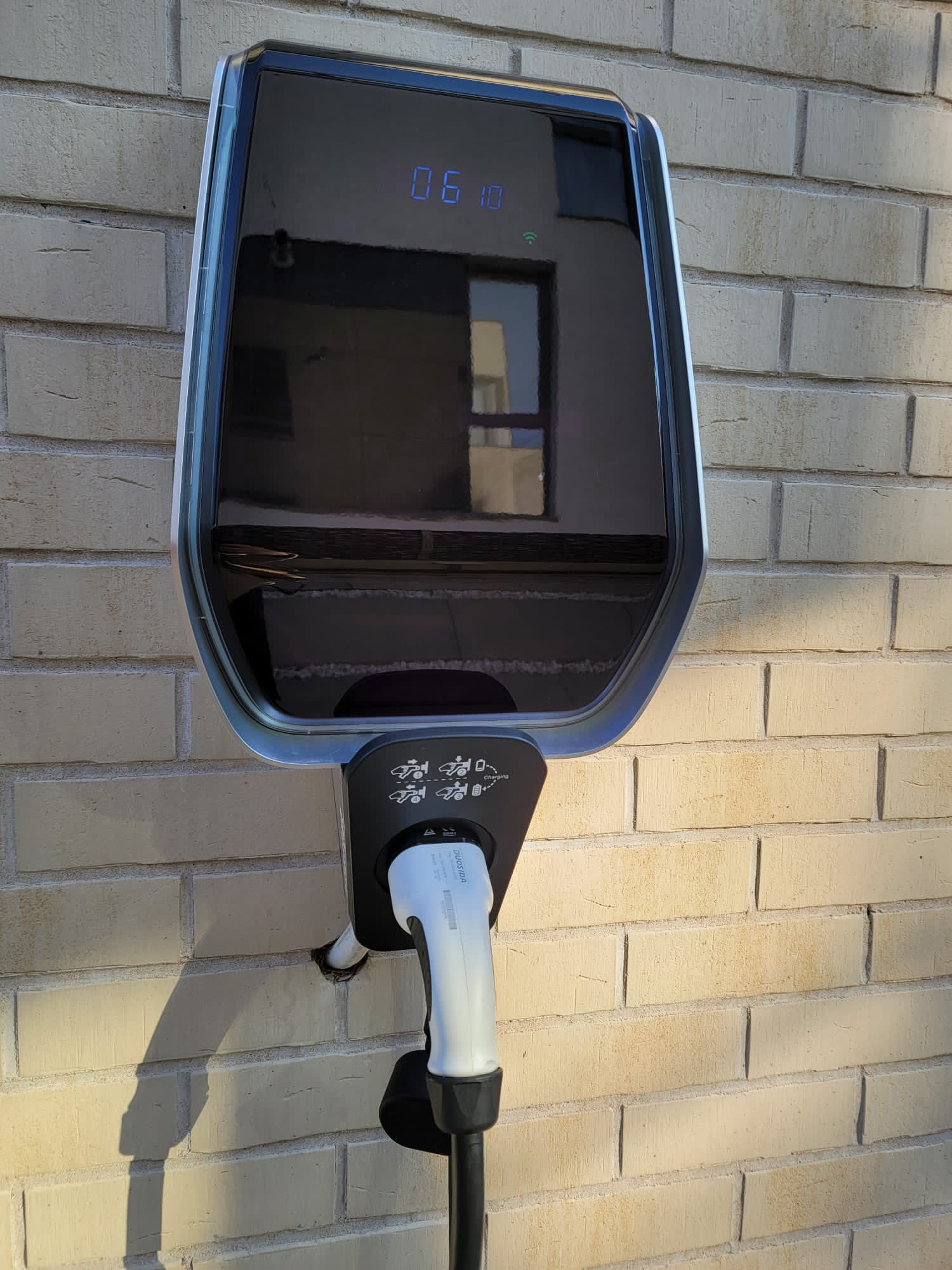

Pictures of our customers

There is a lot of work behind every successful product, no matter what business area. Developing a successful product requires not only good intuition, but also research, planning, reflection, business profiling and much more. With the Linkcharging E-Series, every electric car operator is well equipped. The E-Series Wallbox is designed for private and commercial use.

More than 800,000 Linkcharging charging stations have already been sold and installed worldwide. This makes Linkcharging one of the largest installation capacities for charging solutions and an important companion for the expansion of charging infrastructure.


Simple lines and clear product contours give the Linkcharging wallbox a timeless style. The V-shaped light and the concealed LED display interface, as well as the accommodation of the charging cable in the base of the wallbox ensure innovative design and guarantee high user-friendliness.


The wallbox is suitable for wall mounting as well asfor easy base installationStarting and stopping the charging process can be made possible by using an RFID card. Alternatively, an OCPP backend can be used for remote operation.


With less than 15 watts of power in standby mode, the E-Series is particularly energy efficient. High integrity and security of the user's charging data during the charging process are also guaranteed.




TECHNICAL DATA


  • Type 2 plug - permanently integrated cable or Type 2 socket
  • Phases: Three-phase (3)
  • Charging mode: Mode 3
  • Adjustable rated current from 6 to 32 amps
  • Charging power up to a maximum of 22 kW
  • Voltage: 380-450V AC 3Phase
  • DC circuit breaker: RCD (FI) type B (30mA AC / 6mA DC)
  • Integrated MID electricity meter - recognized throughout Europe
  • Nominal frequency: 50Hz/60Hz
  • Authorization: RFID access cards
  • Communication interface: Wi-Fi 2.4 Ghz
  • Maximum operating altitude: 2000 meters
  • Dimensions: 350mm x 150mm x 650mm
  • Cable length: 5.0 m
  • Operating temperature: -25 to 50 degrees Celsius
  • Material: PC ASA - flame retardant UL94 V-0
  • Protection level: IP 54 (water and dust protected)
  • LED display: LED light ring – red, blue, green
  • Certificate: CE, TÜV, IP 54
  • 2 year manufacturer warranty
  • Integrated residual current detection
  • Supports all electric and hybrid vehicles
  • Simple and practical operation
  • Highest electrical safety thanks to own protection
  • High quality workmanship


  • Package Contents:

-Wall box

-Rfid cards (2 pieces)

-Fastening materials

-Instructions for use


Do you have any questions or suggestions about this product? Please contact us. We will provide you with detailed and independent advice on each device.
